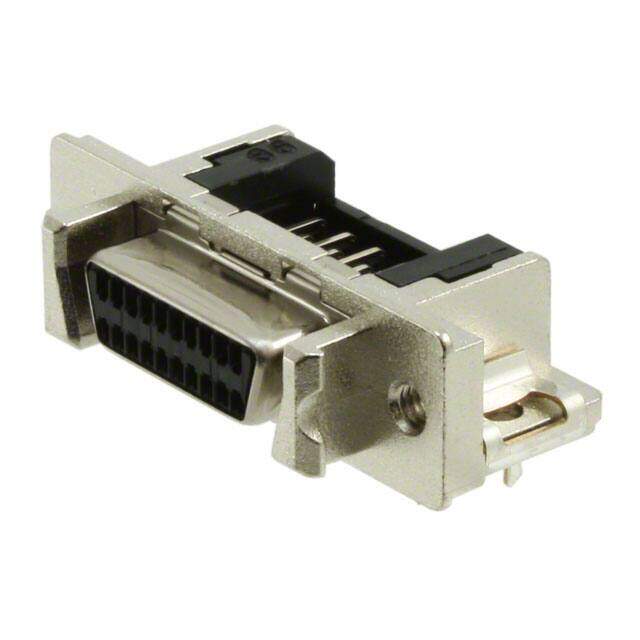

60010205140
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Micro-D Connectors HMIK SV P/S SDP FEM ANG 20P M25-BLK
PDF
/
Inventory: 1882
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Plating Thickness 30μin
Length 33.4mm
Technical
Backset Spacing 0.185 (4.70mm)
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Number of Ports 1
Connector Style D-Type
Flange Feature Housing/Shell (2-56); Latchblocks
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 4
Reliability COMMERCIAL
Reference Standard UL
Shell Finish NICKEL
Current Rating 1A
Depth 17.4mm
Orientation Right Angle
Total Number of Contacts 20
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Additional Feature PANEL MOUNTABLE
Voltage - Rated 240V
Number of Rows 2
Number of Positions 20
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Lock
Series har-mik?
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Shell Material STEEL
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material NOT SPECIFIED
