60010205102
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

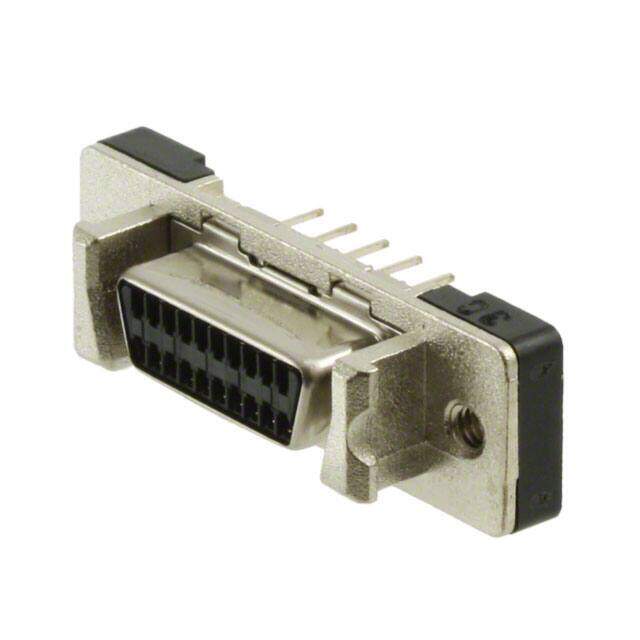

D-Sub Micro-D Connectors F.CONN. W/STR SOLDER PINS
PDF
/
Inventory: 6546
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.134 inch
Technical
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Insertion Force-Max 100.08 N
PCB Contact Row Spacing 1.905 mm
Connector Style D-Type
Mating Contact Pitch 0.05 inch
Flange Feature Housing/Shell (M2.5); Latchblocks
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Body Depth 0.15 inch
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.413 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 4
Body Length or Diameter 1.314 inch
Reliability COMMERCIAL
Shell Finish NICKEL
Current Rating 1A
Orientation Straight
Total Number of Contacts 20
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Additional Feature PANEL MOUNTABLE
Voltage - Rated 240V
Number of Rows 2
Number of Positions 20
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series har-mik?
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Material Plastic
Mounting Type Through Hole
Mount Through Hole
