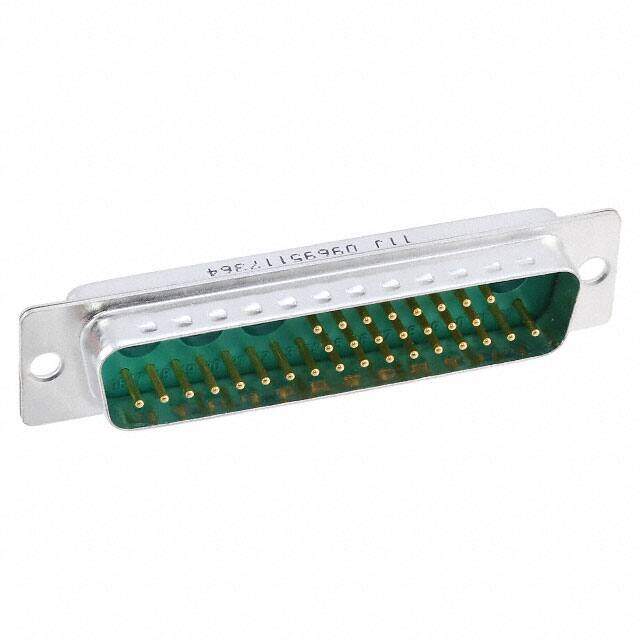

09695117364 image
Favorite
09695117364 image
Favorite

09695117364

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors DSUB ML 36W4 WITH SLDRCUP PL3
PDF
/
Inventory: 4158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Tin Plated
Contact Plating Gold
Contact Material NOT SPECIFIED

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 36 (32 + 4 Coax or Power)
Color Green
Number of Rows 3
Gender Male
Additional Feature STANDARD:DIN 41652T1
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 36
Orientation Straight
Depth 14.3mm
Current Rating 5A
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, Combo
Shell Size, Connector Layout 5 DD D - 36W4

Supply Chain

Factory Lead Time 11 Weeks

Dimensions

Height 15.4mm
Length 66.9mm
Width 15.4mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
