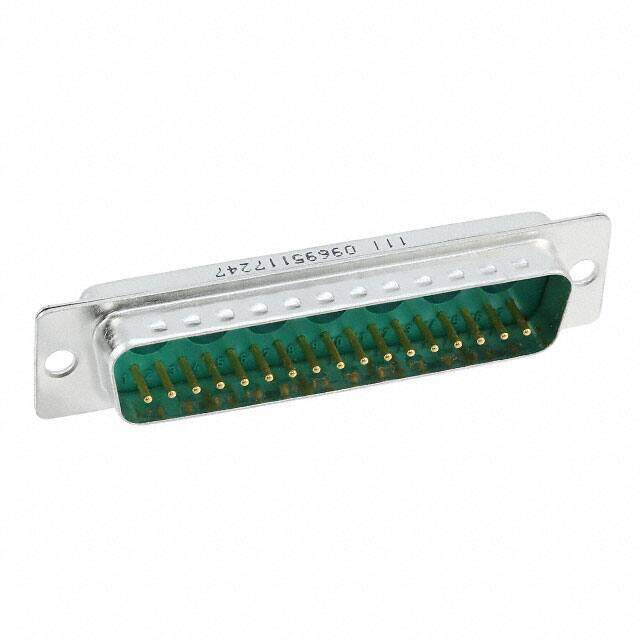

09695117247
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors DSUB ML STR 24W7 WITH PL3 SLDRCUP
PDF
/
Buying Options
Total Price: USD $10.46
Unit Price: USD $10.4632
≥1 USD $10.4632
≥10 USD $9.27256
≥100 USD $8.915808
≥500 USD $8.559232
≥1000 USD $8.08368
≥3000 USD $7.370387
Inventory: 109
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Polyester
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 17
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 24 (17 + 7 Coax or Power)
Color Green
Number of Rows 2
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 24
Orientation Straight
Depth 14.3mm
Current Rating 5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell YES
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Number of Ports 1
Shell Size, Connector Layout 5 DD D - 24W7
Dimensions
Length 66.9mm
Width 15.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
