09695017364
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

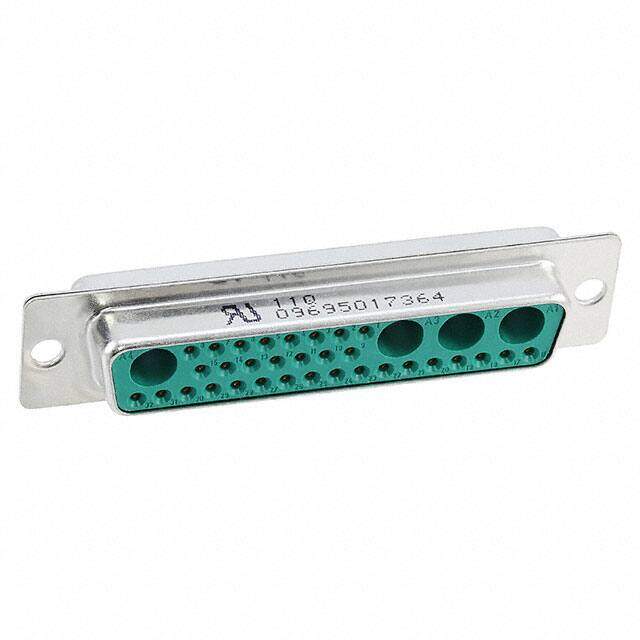

D-Sub Mixed Contact Connectors DSUB FEM 36W4 SLDRCUP
PDF
/
Buying Options
Total Price: USD $14.41
Unit Price: USD $14.4056
≥1 USD $14.4056
≥10 USD $12.48808
≥100 USD $11.836
≥500 USD $11.664576
≥1000 USD $10.292304
≥3000 USD $9.60615
Inventory: 45
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 15.4mm
Length 66.9mm
Height 15.4mm
Technical
Shell Size, Connector Layout 5 DD D - 36W4
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 5A
Depth 14.5mm
Orientation Straight
Total Number of Contacts 36
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Additional Feature STANDARD:DIN 41652T1
Gender Receptacle
Number of Rows 3
Color Green
Number of Positions 36 (32 + 4 Coax or Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
