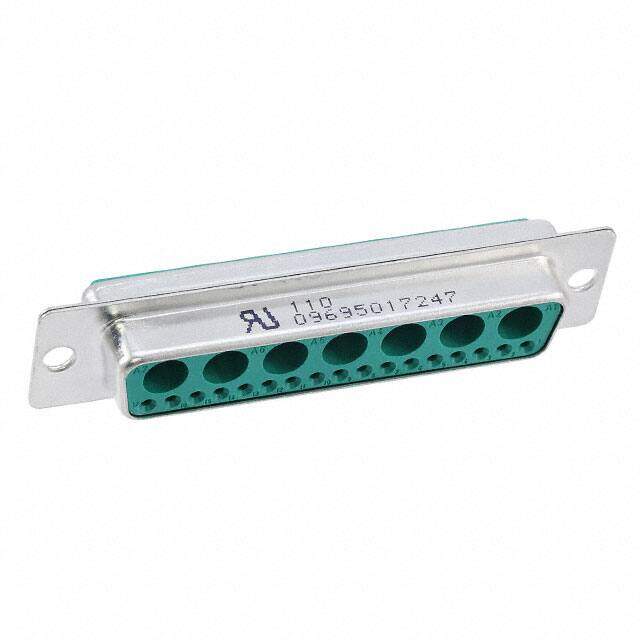

09695017247
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors DSUB FEM STR 24W7 SLDRCUP
PDF
/
Buying Options
Total Price: USD $17.78
Unit Price: USD $17.7848
≥1 USD $17.7848
≥10 USD $15.41584
≥100 USD $14.611168
≥500 USD $14.39944
≥1000 USD $12.70544
≥3000 USD $11.858387
Inventory: 141
Minimum: 1
-
+
Technical Details
Technical
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 24
Orientation Straight
Depth 14.5mm
Current Rating 5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell YES
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Shell Size, Connector Layout 5 DD D - 24W7
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 24 (17 + 7 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 66.9mm
Width 15.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
