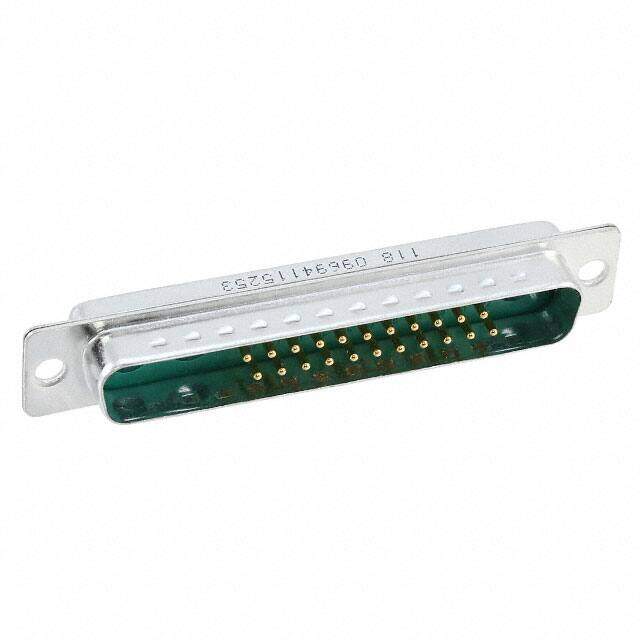

09694115253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors DSUB ML 25W3 WITH SLDRCUP S4
PDF
/
Buying Options
Total Price: USD $14.67
Unit Price: USD $14.6696
≥1 USD $14.6696
≥10 USD $12.71424
≥100 USD $12.05072
≥500 USD $11.876128
≥1000 USD $10.478952
≥3000 USD $9.780355
Inventory: 66
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Height 12.5mm
Technical
Shell Size, Connector Layout 4 DC C - 25W3
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Number of Contacts 25
Contact Finish Gold or Gold-Palladium
Current Rating (Amps) 5A
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 2
Color Green
Number of Positions 25 (22 + 3 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Metal
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Insulation Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
