09694115214
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

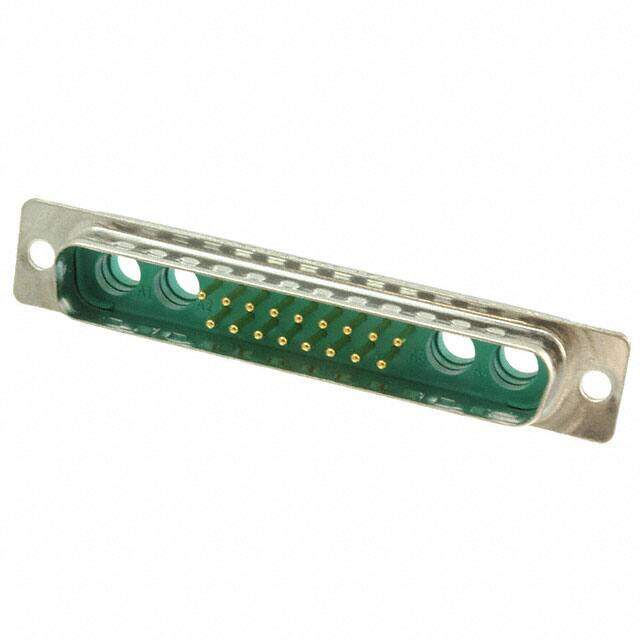

CONN D-SUB PLUG 21P SLDR CUP
PDF
/
Buying Options
Total Price: USD $12.53
Unit Price: USD $12.5312
≥1 USD $12.5312
≥10 USD $11.10912
≥100 USD $10.682144
≥500 USD $10.254992
≥1000 USD $9.68528
≥3000 USD $8.830659
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 69.3mm
Height 12.5mm
Technical
Number of Power Positions 4
Shell Size, Connector Layout 4 DC C - 21WA4
Body Plating Tin
Number of Ports 1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Rated Current (Signal) 5A
Working Voltage 750V
Empty Shell NO
Number of Contacts 21
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Number of Conductors ONE
Shell Finish TIN
Current Rating 5A
Depth 14.3mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Voltage - Rated DC 750V
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Color Green
Number of Positions 21 (17 + 4 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 17
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Metal, Steel
Housing Material Polyester
Dielectric Material Polyester Thermoplastic, Glass Filled
Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold, Tin
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
