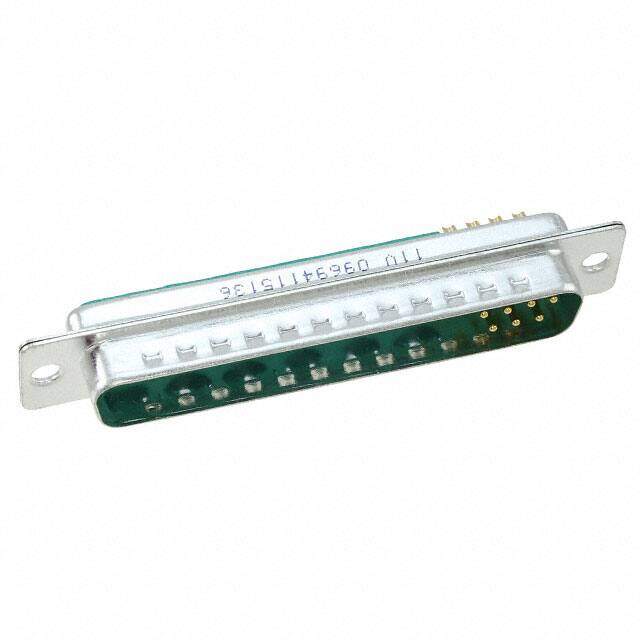

09694115136

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description HARTING 09 69 411 5136 Combination Layout D Sub Connector, Mixed Signal, D Sub-M Series, DC-13W6, Plug, 7 Contacts, 6
PDF
/
Buying Options
Total Price: USD $9.22
Unit Price: USD $9.2224
≥1 USD $9.2224
≥10 USD $8.29752
≥100 USD $7.816512
≥500 USD $7.616048
≥1000 USD $7.415672
≥3000 USD $6.61401
Inventory: 84
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polyester
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Body Material Metal
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 13 (7 + 6 Coax or Power)
Color Green
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A
Contact Finish Gold or Gold-Palladium
Number of Contacts 13
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Shell Size, Connector Layout 4 DC C - 13W6
Number of Power Positions 6

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
