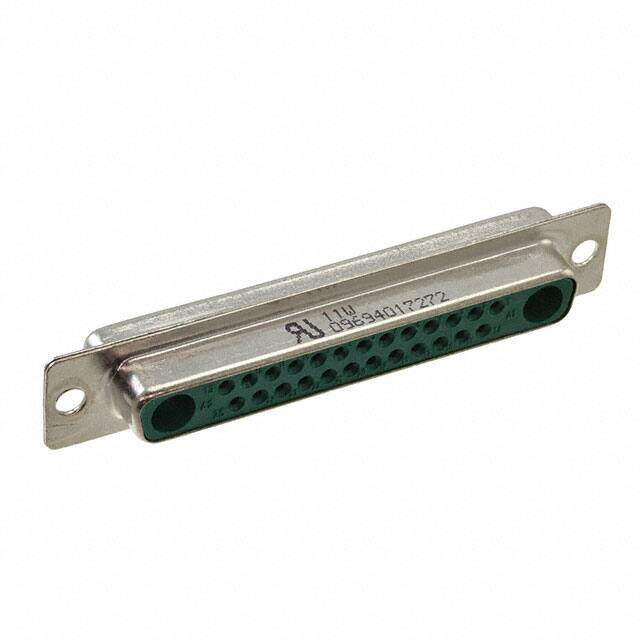

09694017272
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors D SUB FE 27W2 SOLDERCUP PL3
PDF
/
Inventory: 1443
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Width 12.5mm
Length 69.3mm
Technical
Shell Size, Connector Layout 4 DC C - 27W2
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Current Rating 5A
Depth 14.5mm
Orientation Straight
Total Number of Contacts 27
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 27 (25 + 2 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
