09694015214
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

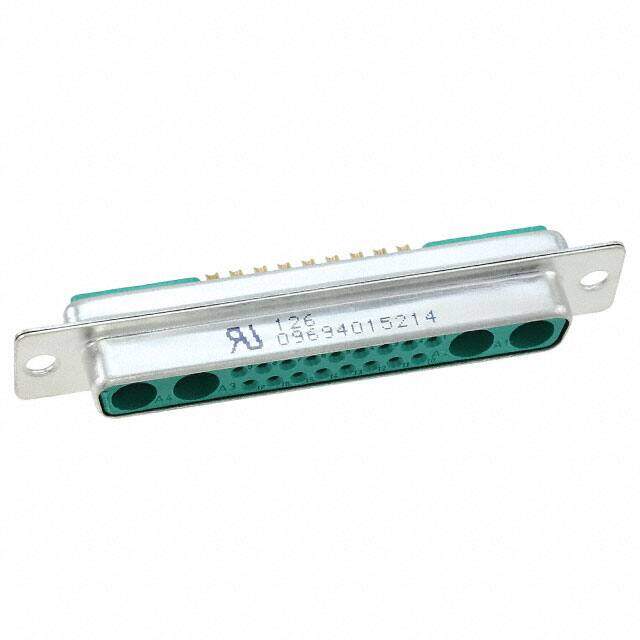

CONN D-SUB RCPT 21P SLDR CUP
PDF
/
Buying Options
Total Price: USD $15.19
Unit Price: USD $15.1888
≥1 USD $15.1888
≥10 USD $13.16744
≥100 USD $12.48016
≥500 USD $12.299232
≥1000 USD $10.852248
≥3000 USD $10.128765
Inventory: 103
Minimum: 1
-
+
Technical Details
Technical
Shell Size, Connector Layout 4 DC C - 21WA4
Number of Power Positions 4
Body Plating Tin
Number of Ports 1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Working Voltage 750V
Empty Shell NO
Number of Contacts 21
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Number of Conductors ONE
Current Rating 5A
Depth 14.5mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Voltage - Rated DC 750V
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 21 (17 + 4 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Number of Terminations 17
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 69.3mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Metal, Steel
Housing Material Polyester
Dielectric Material Polyester Thermoplastic, Glass Filled
Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
