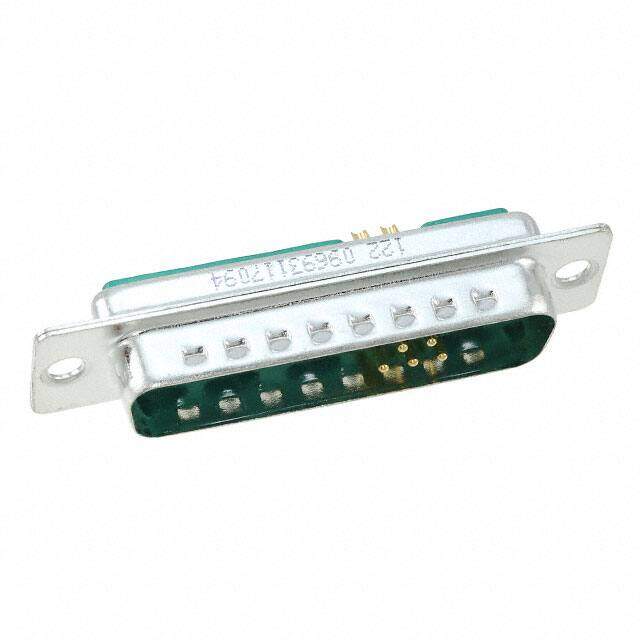

09693117094

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors 5+4 MALE SLDR 9W4 5 SIGNAL 4 SPECIAL
PDF
/
Buying Options
Total Price: USD $6.25
Unit Price: USD $6.248
≥1 USD $6.248
≥10 USD $5.65136
≥100 USD $5.338432
≥500 USD $5.208368
≥1000 USD $4.947976
≥3000 USD $4.427104
Inventory: 66
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Polyester
Body Material Metal
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9 (5 + 4 Coax or Power)
Color Green
Number of Rows 2
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Orientation Straight
Depth 14.3mm
Current Rating 5A
Number of Conductors ONE
Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Number of Ports 1
Shell Size, Connector Layout 3 DB B - 9W4
Number of Power Positions 4

Dimensions

Length 53mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
