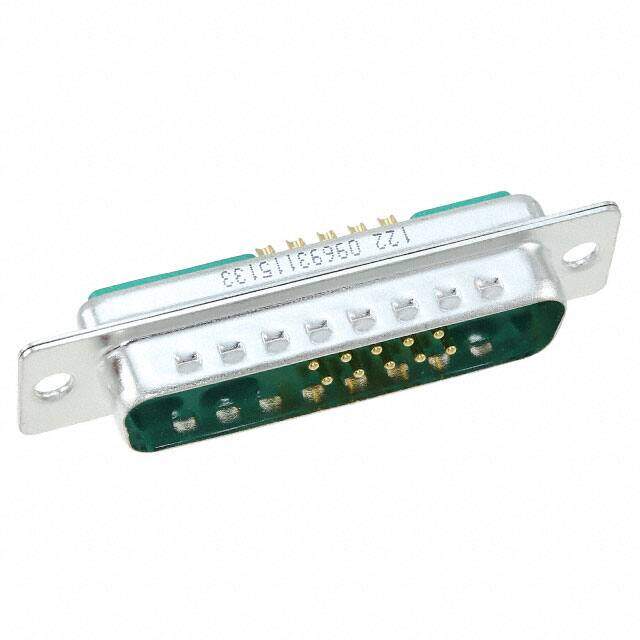

09693115133
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB PLUG 13P SLDR CUP
PDF
/
Buying Options
Total Price: USD $9.32
Unit Price: USD $9.3192
≥1 USD $9.3192
≥10 USD $8.38992
≥100 USD $7.903104
≥500 USD $7.700528
≥1000 USD $7.497952
≥3000 USD $6.687331
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Steel
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Body Material Metal, Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 13
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 13 (10 + 3 Coax or Power)
Color Green
Number of Rows 2
Gender Male
Voltage - Rated DC 750V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 13
Orientation Straight
Depth 14.1mm
Current Rating 5A
Contact Finish Gold or Gold-Palladium
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 750V
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Number of Ports 1
Body Plating Tin
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Number of Power Positions 3
Dimensions
Height 12.5mm
Length 53mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
