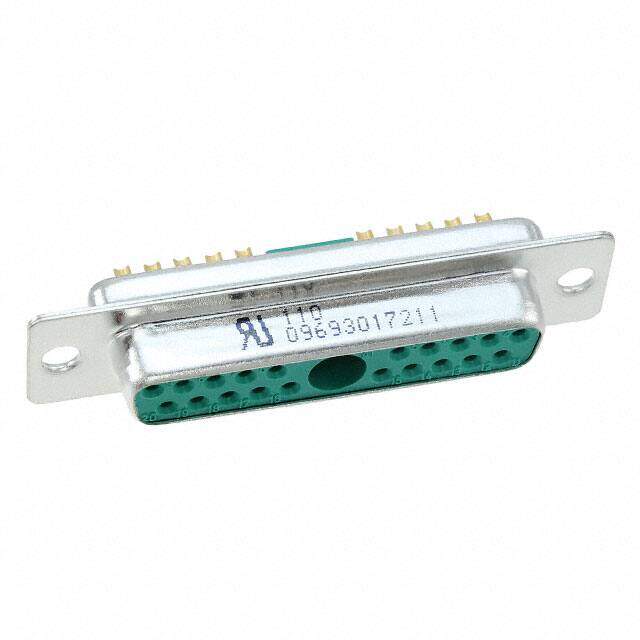

09693017211 image
Favorite
09693017211 image
Favorite

09693017211

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors DSUB FEM STR 21W1 SLDRCUP
PDF
/
Buying Options
Total Price: USD $10.69
Unit Price: USD $10.692
≥1 USD $10.692
Inventory: 68
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 3.94μin 0.10μm
Width 12.5mm
Length 53mm

Technical

Shell Size, Connector Layout 3 DB B - 21W1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Current Rating 5A
Depth 14.5mm
Orientation Straight
Total Number of Contacts 21
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 21 (20 + 1 Coax or Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
