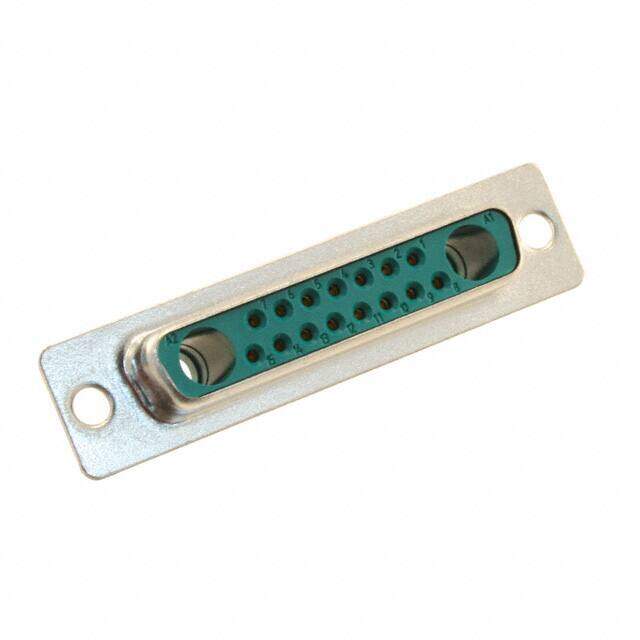

09693017172
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D SUB FE 17W2 WITH SOLDER CUP PL
PDF
/
Buying Options
Total Price: USD $10.16
Unit Price: USD $10.164
≥1 USD $10.164
≥10 USD $9.01208
≥100 USD $8.665888
≥500 USD $8.319168
≥1000 USD $7.856992
≥3000 USD $7.163728
Inventory: 113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 17 (15 + 2 Coax or Power)
Color Green
Number of Rows 2
Gender Receptacle
Contact Finish - Mating NOT SPECIFIED
MIL Conformance YES
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Orientation Straight
Depth 14.3mm
Current Rating 5A
Number of Contacts 17
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, Combo
Shell Size, Connector Layout 3 DB B - 17W2
Dimensions
Height 12.5mm
Length 53mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
