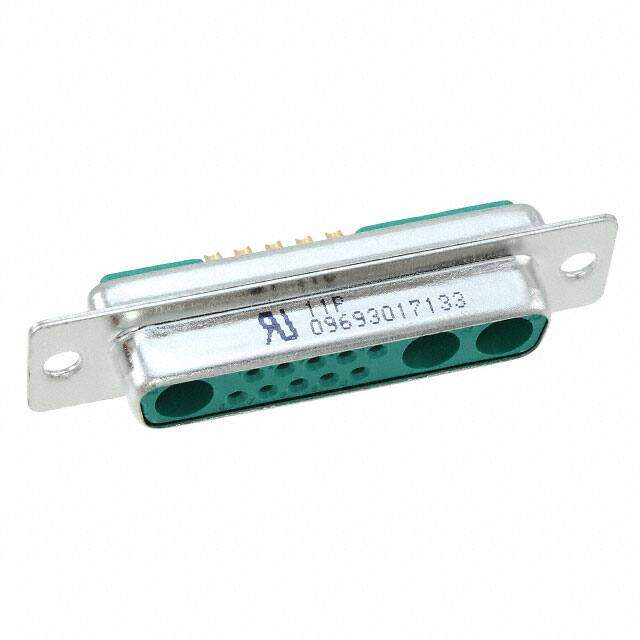

09693017133 image
Favorite
09693017133 image
Favorite

09693017133

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors 10+3 FML SLDR 13W3 10 SIGNAL 3 SPECIAL
PDF
/
Inventory: 8024
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 53mm

Technical

Shell Size, Connector Layout 3 DB B - 13C3 13W3
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 13
Current Rating 5A
Depth 12.6mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 13 (10 + 3 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
