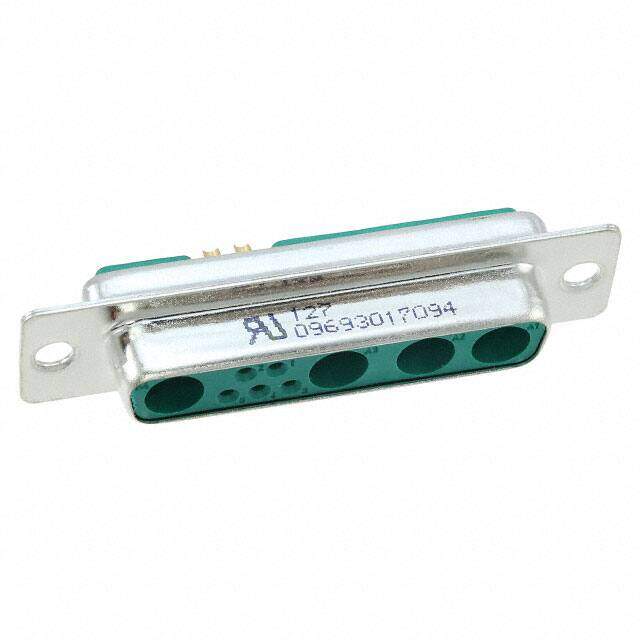

09693017094 image
Favorite
09693017094 image
Favorite

09693017094

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors 5+4 FML SHELL 9W4 5 SIGNAL 4 SPECIAL
PDF
/
Buying Options
Total Price: USD $7.25
Unit Price: USD $7.2512
≥1 USD $7.2512
≥10 USD $6.55688
≥100 USD $6.194144
≥500 USD $6.043136
≥1000 USD $5.741032
≥3000 USD $5.136736
Inventory: 125
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 53mm

Technical

Shell Size, Connector Layout 3 DB B - 9W4
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
Number of Contacts 9
Number of Conductors ONE
Current Rating 5A
Depth 12.6mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 9 (5 + 4 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 7 Weeks
