09693015133

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

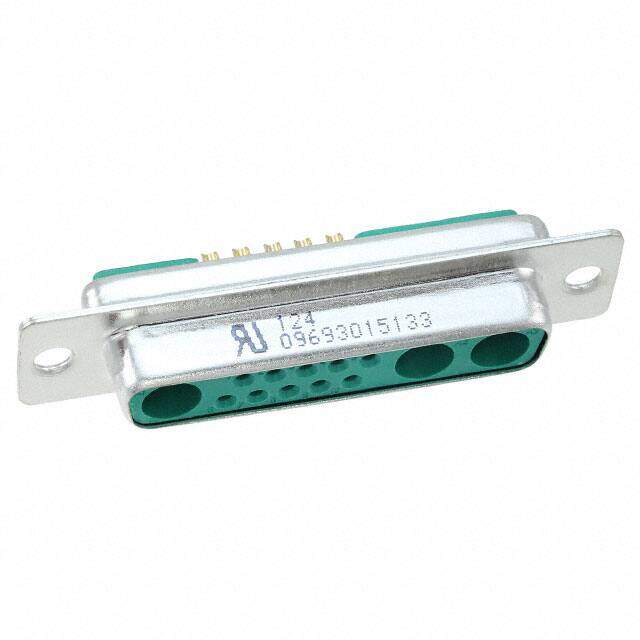

Description HARTING 09 69 301 5133 Combination Layout D Sub Connector, Mixed Signal, D Sub-M Series, DB-13W3, Receptacle, 10 Contacts
PDF
/
Buying Options
Total Price: USD $9.45
Unit Price: USD $9.450301
≥1 USD $9.450301
≥10 USD $8.915381
≥100 USD $8.410734
≥500 USD $7.934652
≥1000 USD $7.485522
Inventory: 7847
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Height 12.5mm

Technical

Number of Power Positions 3
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 13
Contact Finish Gold or Gold-Palladium
Current Rating 5A
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 750V
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 13 (10 + 3 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold, Tin
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
