09693015094

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

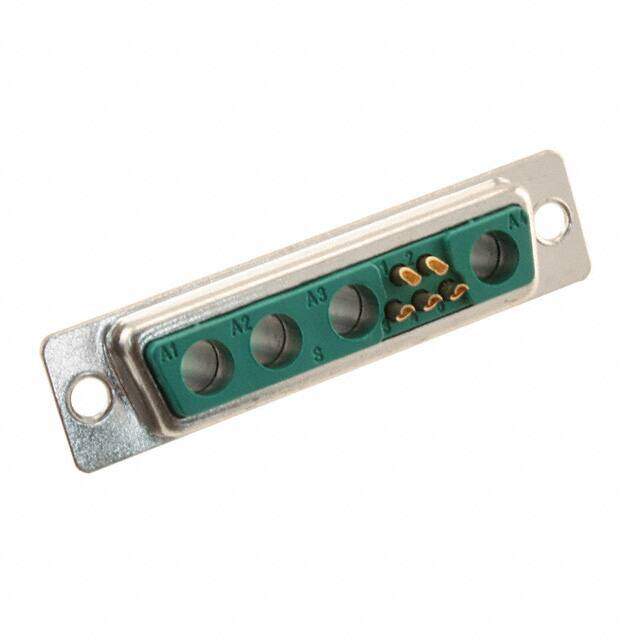

Description HARTING 09 69 301 5094 Combination Layout D Sub Connector, Mixed Signal, D Sub-M Series, DB-9W4, Receptacle, 5 Contacts, 4
PDF
/
Buying Options
Total Price: USD $6.99
Unit Price: USD $6.994564
≥1 USD $6.994564
≥10 USD $6.598649
≥100 USD $6.225141
≥500 USD $5.872774
≥1000 USD $5.540351
Inventory: 8881
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Technical

Number of Power Positions 4
Shell Size, Connector Layout 3 DB B - 9W4
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 9
Contact Finish Gold or Gold-Palladium
Current Rating (Amps) 5A
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 9 (5 + 4 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Shielded
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Body Material Metal
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Insulation Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
