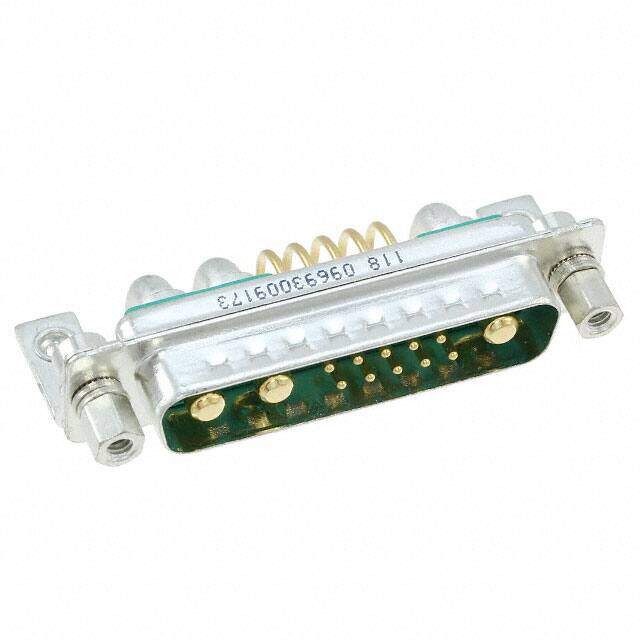

09693009173 image
Favorite
09693009173 image
Favorite

09693009173

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description 13W3_MA_ANG_40A_S4_metal bracket_clip_4-
PDF
/
Inventory: 2746
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Technical

Backset Spacing 0.406 (10.30mm)
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Connector Style D-Sub, Combo
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Finish Gold
Contact Type Signal and Power
Number of Rows 2
Number of Positions 13 (10 + 3 Power)
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Grounding Indents, Mounting Brackets
Packaging Bulk

Physical

Shell Material, Finish Tin Plated
Mounting Type Through Hole, Right Angle
Mount Brackets

Supply Chain

Factory Lead Time 9 Weeks
