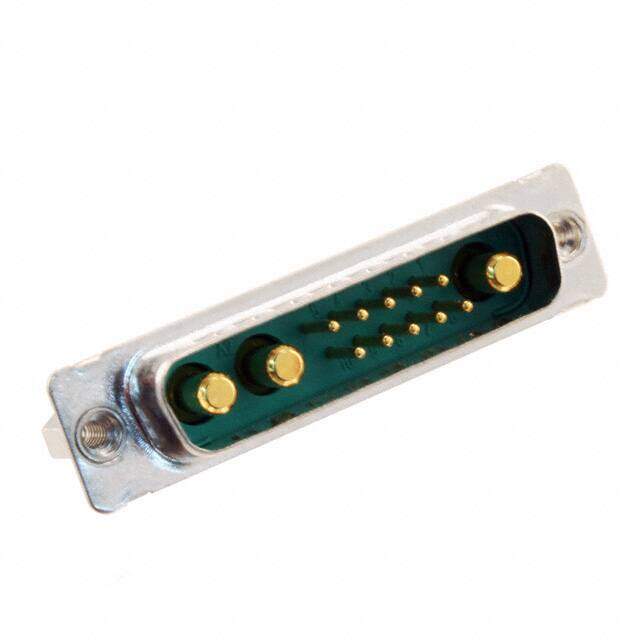

09693009006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors 13W3 ML STR 20 A S4
PDF
/
Inventory: 1625
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Number of Pins 13
Dielectric Material Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents, Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 13 (10 + 3 Coax or Power)
Color Green
Number of Rows 2
Contact Type Signal and Coax or Power (Not Included)
Contact Finish Gold
Flange Feature Board Side (4-40)
Connector Style D-Sub, Combo
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status ROHS3 Compliant
