09692117111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

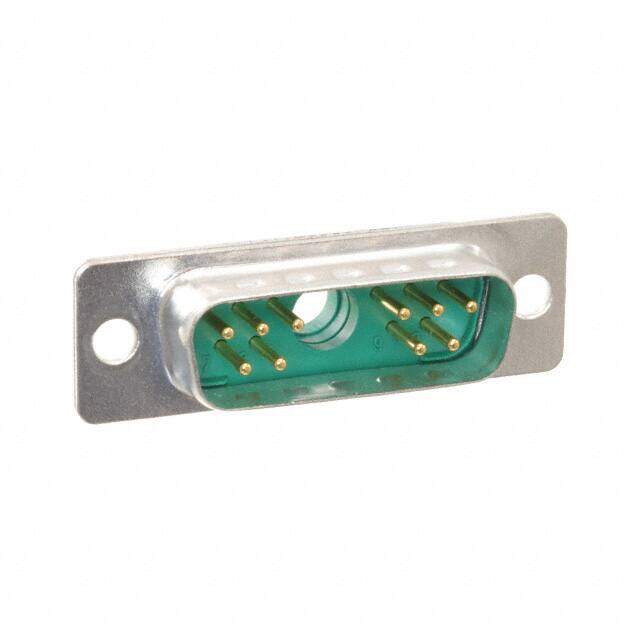

D-Sub Mixed Contact Connectors DSUB ML 11W1 WITH SLDRCUP PL3
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.052
≥1 USD $8.052
≥10 USD $7.24856
≥100 USD $6.8288
≥500 USD $6.653504
≥1000 USD $6.478472
≥3000 USD $5.77808
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 39.1mm
Height 12.5mm
Technical
Shell Size, Connector Layout 2 DA A - 11C1 11W1
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 5A
Depth 14.3mm
Orientation Straight
Total Number of Contacts 11
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Color Green
Number of Positions 11 (10 + 1 Coax or Power)
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Steel
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
