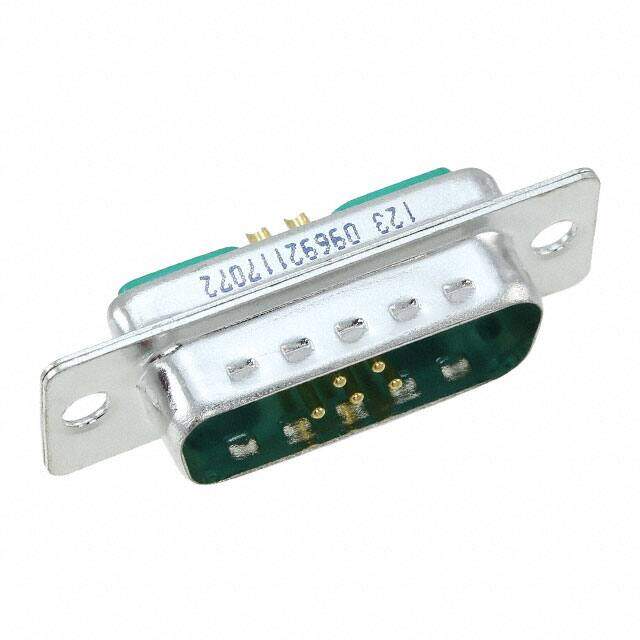

09692117072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Mixed Contact Connectors 5+2 ML SLDR 7W3 SHL 5 SIGNAL 2 SPECIAL
PDF
/
Buying Options
Total Price: USD $5.89
Unit Price: USD $5.8872
≥1 USD $5.8872
≥10 USD $5.32312
≥100 USD $5.028672
≥500 USD $4.906176
≥1000 USD $4.660832
≥3000 USD $4.170258
Inventory: 197
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 39.1mm
Technical
Shell Size, Connector Layout 2 DA A - 7W2
Connector Style D-Sub, Combo
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Number of Contacts 7
Number of Conductors ONE
Current Rating 5A
Depth 14.1mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 2
Color Green
Number of Positions 7 (5 + 2 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Metal
Housing Material Steel
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 9 Weeks
