09692115072

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

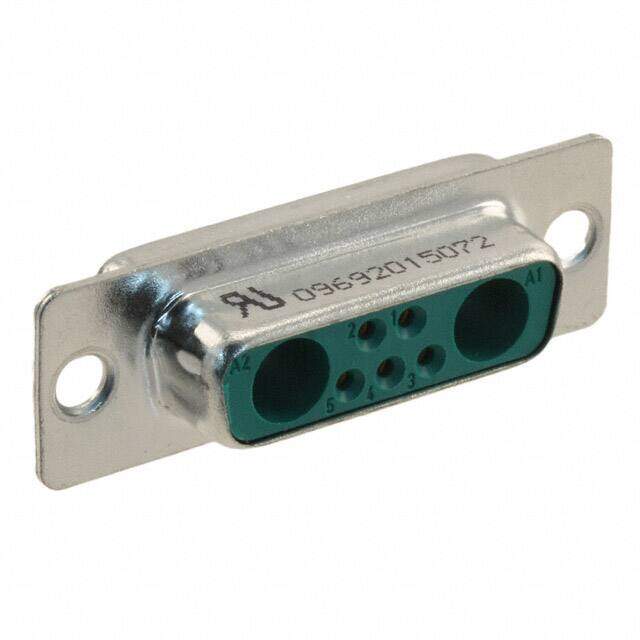

Description CONN DSUB PLUG 7POS SLDR CUP
PDF
/
Buying Options
Total Price: USD $7.08
Unit Price: USD $7.084
≥1 USD $7.084
≥10 USD $6.40288
≥100 USD $6.04912
≥500 USD $5.901632
≥1000 USD $5.606568
≥3000 USD $5.016378
Inventory: 183
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 39.1mm
Height 12.5mm

Technical

Shell Size, Connector Layout 2 DA A - 7W2
Body Plating Tin
Number of Ports 1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Working Voltage 750V
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold or Gold-Palladium
Current Rating 5A
Depth 14.1mm
Orientation Straight
Total Number of Contacts 7
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Voltage - Rated DC 750V
Gender Male
Number of Rows 2
Color Green
Number of Positions 7 (5 + 2 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Body Material Metal, Steel
Housing Material Glass
Dielectric Material Polyester Thermoplastic, Glass Filled
Material Steel
Shell Material Metal
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
