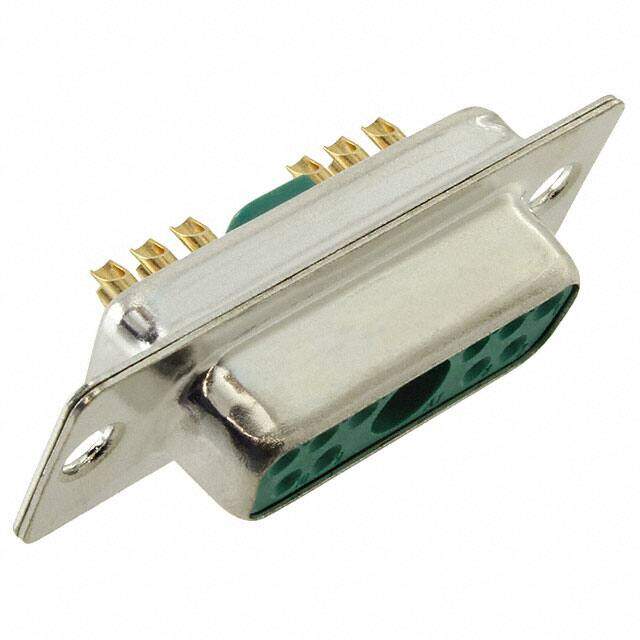

09692017111 image
Favorite
09692017111 image
Favorite

09692017111

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors DSUB FEM 11W1 SLDRCUP
PDF
/
Buying Options
Total Price: USD $8.94
Unit Price: USD $8.9408
≥1 USD $8.9408
≥10 USD $8.04848
≥100 USD $7.581728
≥500 USD $7.387248
≥1000 USD $7.192768
≥3000 USD $6.4152
Inventory: 187
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 39.1mm

Technical

Shell Size, Connector Layout 2 DA A - 11C1 11W1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 5A
Depth 14.5mm
Orientation Straight
Total Number of Contacts 11
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Color Green
Number of Positions 11 (10 + 1 Coax or Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Steel
Dielectric Material Polyester Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
