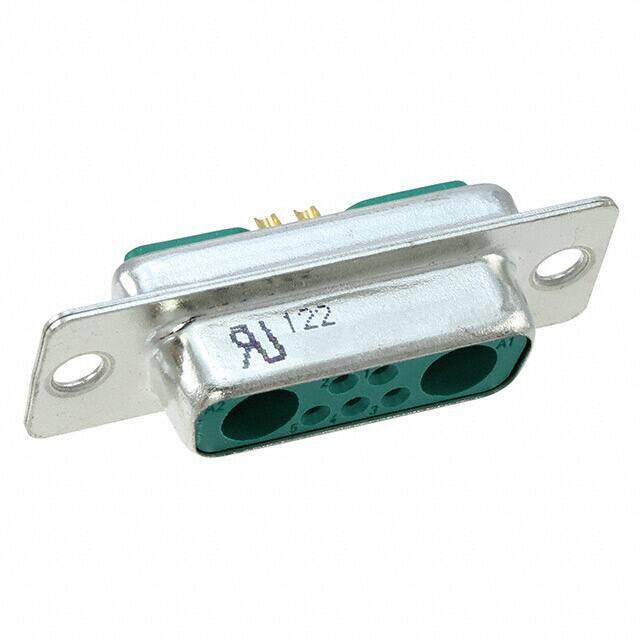

09692017072 image
Favorite
09692017072 image
Favorite

09692017072

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONNECTOR, D SUB COMBO, RECEPTACLE, 7POS
PDF
/
Buying Options
Total Price: USD $6.65
Unit Price: USD $6.6528
≥1 USD $6.6528
≥10 USD $6.01744
≥100 USD $5.6848
≥500 USD $5.546112
≥1000 USD $5.268824
≥3000 USD $4.714195
Inventory: 147
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Panel
Mounting Type Free Hanging (In-Line)
Number of Pins 7
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Polyester
Body Material Metal
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 7 (5 + 2 Coax or Power)
Color Green
Number of Rows 2
Gender Receptacle
MIL Conformance YES
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Total Number of Contacts 7
Orientation Straight
Depth 14.3mm
Current Rating 5A
Contact Finish Gold or Gold-Palladium
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, Combo
Number of Ports 1
Shell Size, Connector Layout 2 DA A - 7W2

Dimensions

Height 12.5mm
Length 39.1mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
