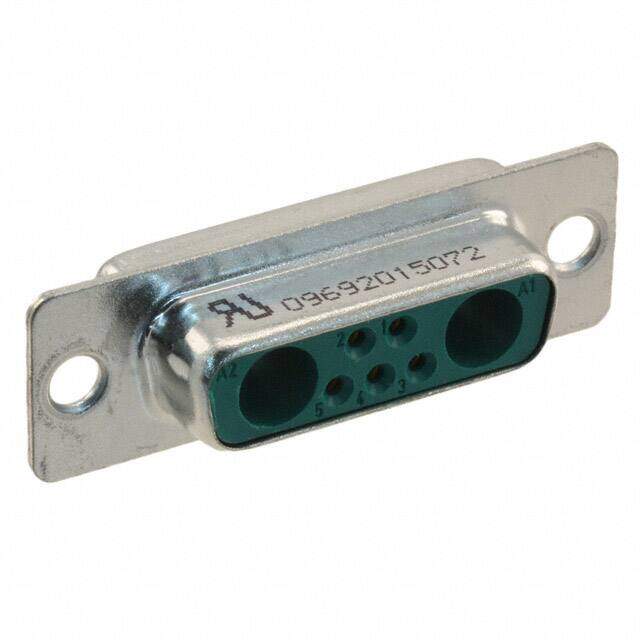

09692015072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB RCPT 7POS SLDR CUP
PDF
/
Buying Options
Total Price: USD $7.38
Unit Price: USD $7.3832
≥1 USD $7.3832
≥10 USD $6.64136
≥100 USD $6.2568
≥500 USD $6.096288
≥1000 USD $5.935864
≥3000 USD $5.294142
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Metal
Material Steel
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Body Material Metal, Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Shielded
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 7 (5 + 2 Coax or Power)
Color Green
Number of Rows 2
Gender Receptacle
Voltage - Rated DC 750V
MIL Conformance YES
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Orientation Straight
Depth 14.3mm
Current Rating 5A
Contact Finish Gold or Gold-Palladium
Number of Contacts 7
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 750V
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Number of Ports 1
Body Plating Tin
Shell Size, Connector Layout 2 DA A - 7W2
Dimensions
Height 12.5mm
Length 39.1mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
