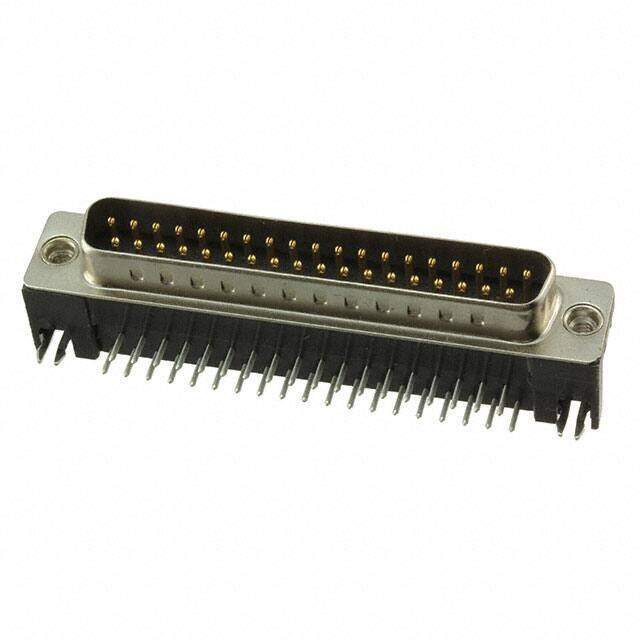

09684637812

HARTING
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description Conn D-Subminiature M 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $5.63
Unit Price: USD $5.632
≥1 USD $5.632
≥10 USD $5.09168
≥100 USD $4.81008
≥500 USD $4.692864
≥1000 USD $4.458256
≥3000 USD $3.988934
Inventory: 15
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 12.55mm
Length 69.4mm
Height 12.55mm

Technical

Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 18.2mm
Orientation Straight
Total Number of Contacts 37
Pitch 2.84mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Number of Positions 37
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Package / Case Metal
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks

Alternative Model
