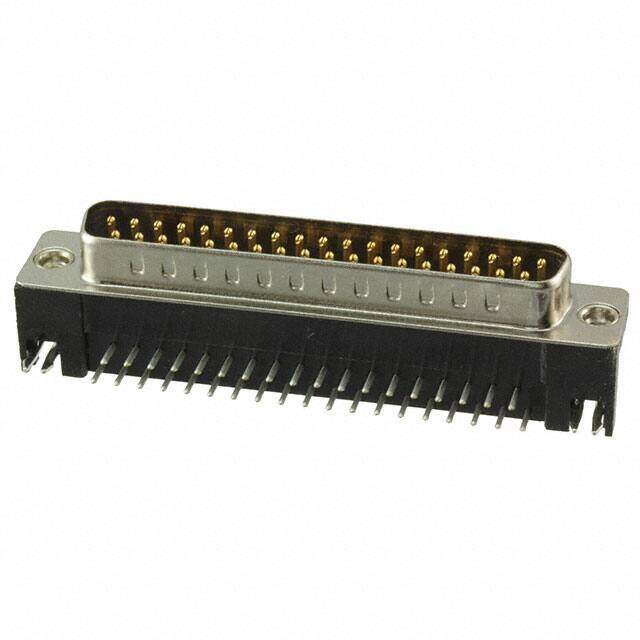

09684635812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D-SUB US 37M-EW
PDF
/
Inventory: 3913
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Technical
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.109 inch
Flange Feature Housing/Shell (4-40)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Shell Finish TIN
Total Number of Contacts 37
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Number of Rows 2
Number of Positions 37
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
