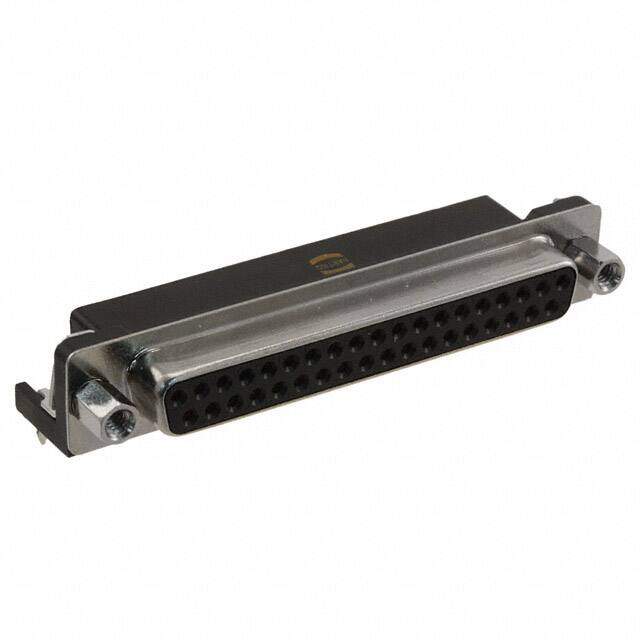

D-Sub Standard Connectors DSUB SV FEM SSDP ANG-US 37P AU3
PDF
/
Buying Options
Total Price: USD $7.56
Unit Price: USD $7.557446
≥1 USD $7.557446
≥10 USD $7.129668
≥100 USD $6.726101
≥500 USD $6.345375
≥1000 USD $5.986209
Inventory: 4205
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Mating Contact Pitch 0.109 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 5A
Total Number of Contacts 37
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Number of Positions 37
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
