Category Connectors, Interconnects / D-Sub Connectors
Description

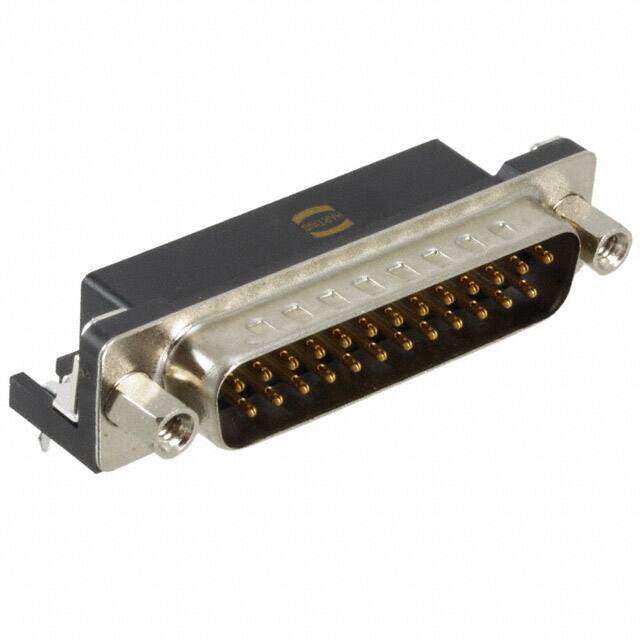

D-Sub Standard Connectors DSUB SV ML SSDP ANG-US 25P AU3
PDF
/
Buying Options
Total Price: USD $4.89
Unit Price: USD $4.8928
≥1 USD $4.8928
≥10 USD $4.43872
≥100 USD $4.203936
≥500 USD $4.106256
≥1000 USD $3.91072
≥3000 USD $3.421862
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 25
Current Rating 5A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.494 inch
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Mating Contact Pitch 0.109 inch
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.318 (8.08mm)
Test Voltage 1kV
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
