09683637812
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

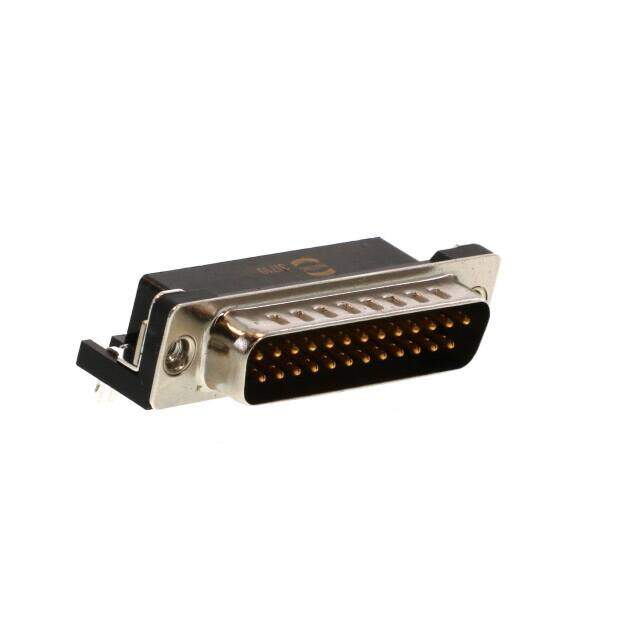

D-Sub Standard Connectors D-SUB US 25M-EW
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.5508
≥100 USD $3.36336
≥500 USD $3.28504
≥1000 USD $3.128576
≥3000 USD $2.737504
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case Metal
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 25
Orientation Right Angle
Depth 18.2mm
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.494 inch
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.318 (8.08mm)
Dimensions
Length 53.1mm
Width 12.55mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
