Category Connectors, Interconnects / D-Sub Connectors
Description

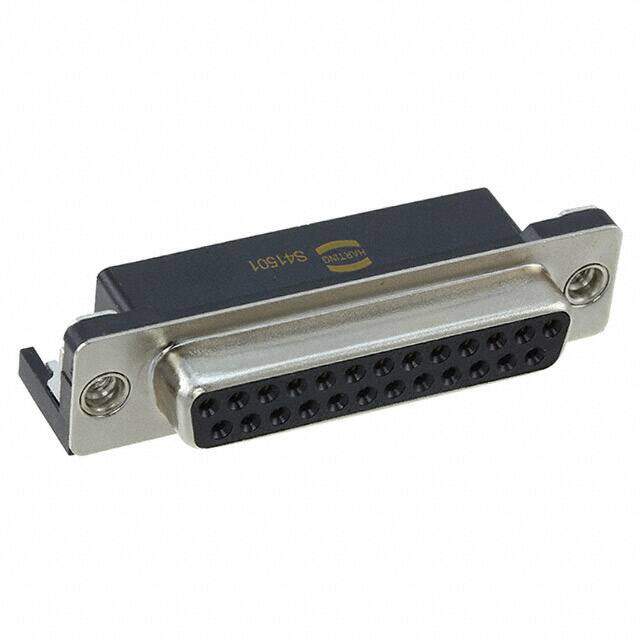

D-Sub Standard Connectors D-SUB US 25F-EW 6.08
PDF
/
Buying Options
Total Price: USD $6.27
Unit Price: USD $6.2744
≥1 USD $6.2744
≥10 USD $5.67072
≥100 USD $5.356736
≥500 USD $5.226144
≥1000 USD $4.964872
≥3000 USD $4.44224
Inventory: 74
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 53.1mm
Technical
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Depth 18.2mm
Orientation Straight
Total Number of Contacts 25
Pitch 2.84mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
