09682637812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

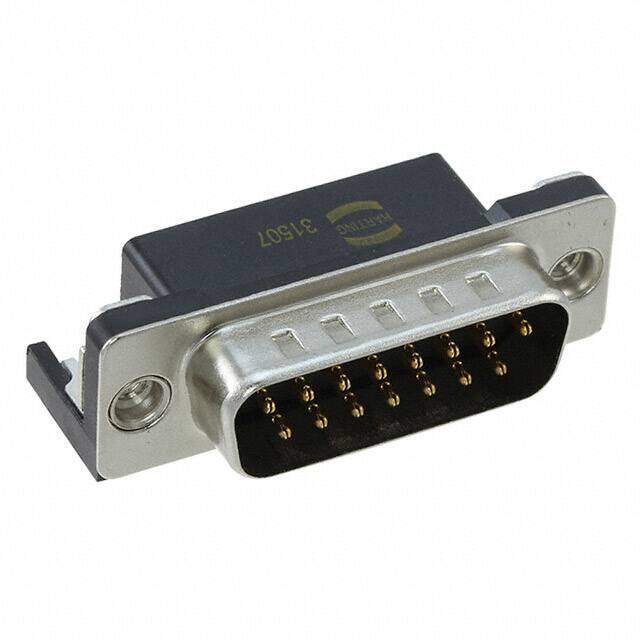

CONN D-SUB PLUG 15POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.1328
≥1 USD $3.1328
≥10 USD $2.84504
≥100 USD $2.69456
≥500 USD $2.631728
≥1000 USD $2.506416
≥3000 USD $2.193101
Inventory: 175
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 39.2mm
Technical
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 18.2mm
Orientation Straight
Total Number of Contacts 15
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
