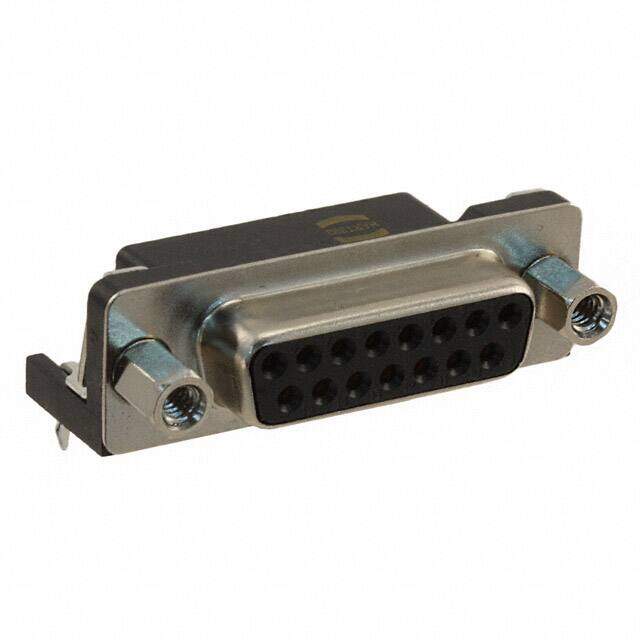

D-Sub Standard Connectors DSUB SV FEM SSDP ANG-US 15P AU3
PDF
/
Buying Options
Total Price: USD $4.54
Unit Price: USD $4.5408
≥1 USD $4.5408
≥10 USD $4.1228
≥100 USD $3.904736
≥500 USD $3.81392
≥1000 USD $3.632376
≥3000 USD $3.178349
Inventory: 221
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 39.2mm
Technical
Test Voltage 1kV
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.494 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 5A
Depth 18.2mm
Orientation Right Angle
Total Number of Contacts 15
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
