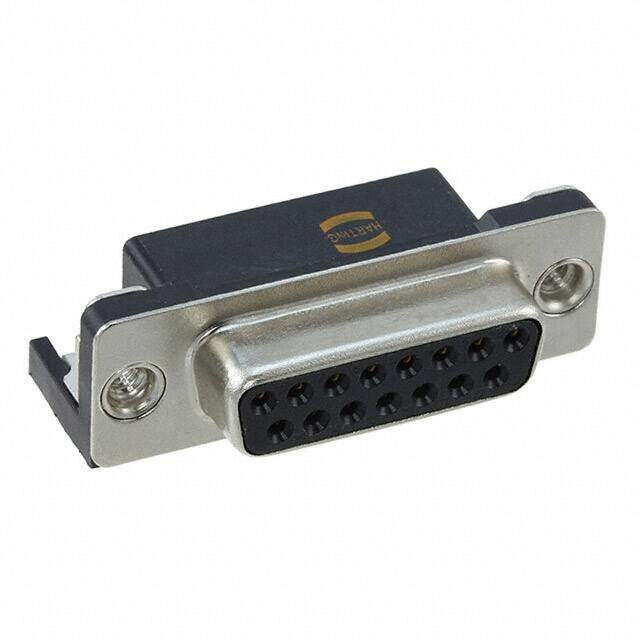

D-Sub Standard Connectors D-SUB US 15F-EW
PDF
/
Buying Options
Total Price: USD $4.88
Unit Price: USD $4.884
≥1 USD $4.884
≥10 USD $4.43432
≥100 USD $4.199712
≥500 USD $4.102032
≥1000 USD $3.90676
≥3000 USD $3.418413
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.84mm
Total Number of Contacts 15
Orientation Right Angle
Depth 18.2mm
Current Rating 6A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold or Gold-Palladium
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.494 inch
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.318 (8.08mm)
Dimensions
Length 39.2mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
