09681637812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

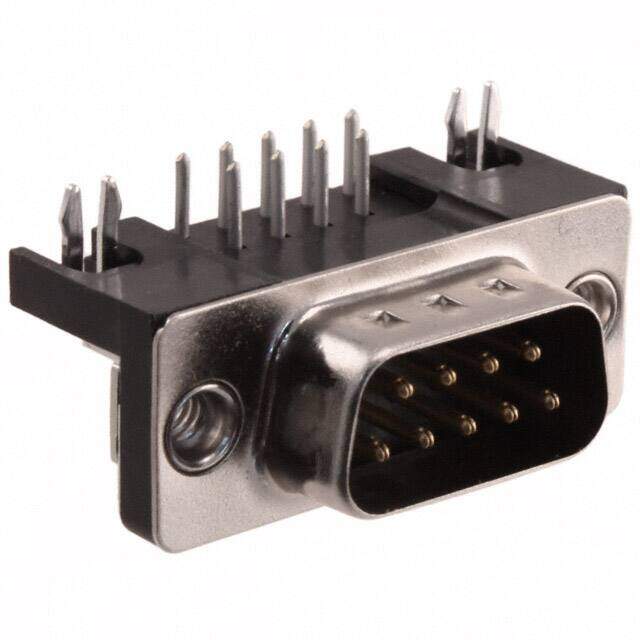

D-Sub Standard Connectors D-SUB US 9M-EW
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.5784
≥1 USD $2.5784
≥10 USD $2.3408
≥100 USD $2.216544
≥500 USD $2.165152
≥1000 USD $2.062016
≥3000 USD $1.804282
Inventory: 80
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Gender Male
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 9
Orientation Right Angle
Depth 18.2mm
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.318 (8.08mm)
Dimensions
Length 30.9mm
Width 12.55mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
