09681635812
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

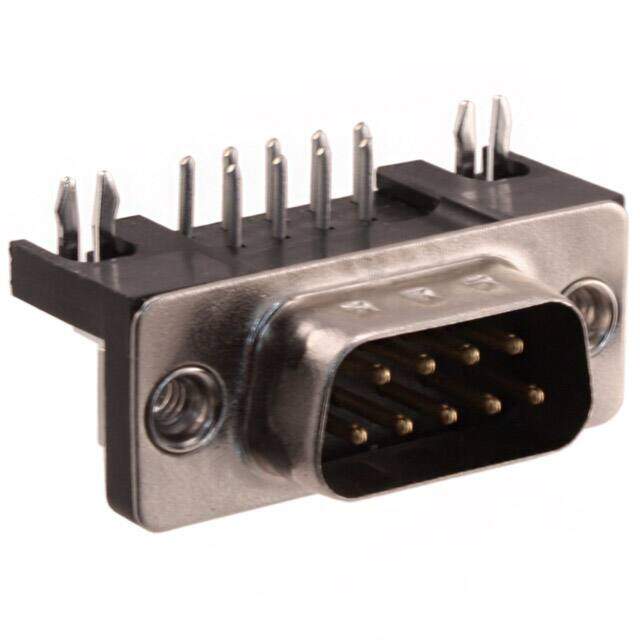

D-Sub Standard Connectors D-SUB US 9M-EW
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.3968
≥1 USD $3.3968
≥10 USD $3.08704
≥100 USD $2.923712
≥500 USD $2.855776
≥1000 USD $2.719728
≥3000 USD $2.379766
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Shell Finish TIN
Depth 18.2mm
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.84mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 30.9mm
