HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

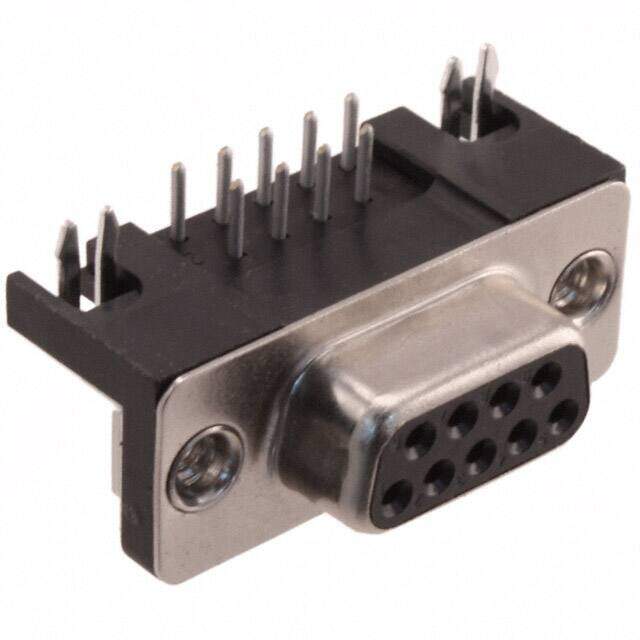

Description D-Sub Standard Connectors 9P DSUB FEMALE R/A STAMPED SOLDER PIN
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2208
≥1 USD $3.2208
≥10 USD $2.92336
≥100 USD $2.76848
≥500 USD $2.70424
≥1000 USD $2.575496
≥3000 USD $2.253574
Inventory: 360
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.55mm
Length 30.9mm

Technical

Backset Spacing 0.318 (8.08mm)
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 18.2mm
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Female
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
