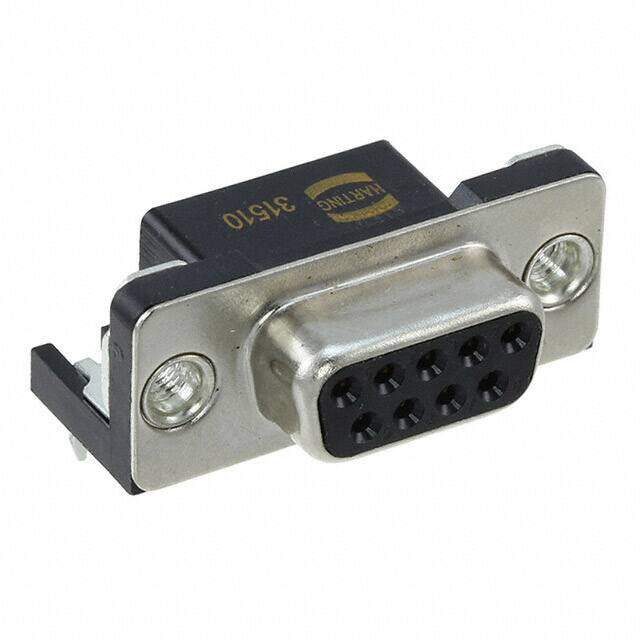

09681537611 image
Favorite
09681537611 image
Favorite

09681537611

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB ML FEM 09P US PL3 WITH GRND CLIP
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6256
≥1 USD $3.6256
≥10 USD $3.28856
≥100 USD $3.114848
≥500 USD $3.042336
≥1000 USD $2.897488
≥3000 USD $2.535315
Inventory: 105
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (M3)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.318 (8.08mm)

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
