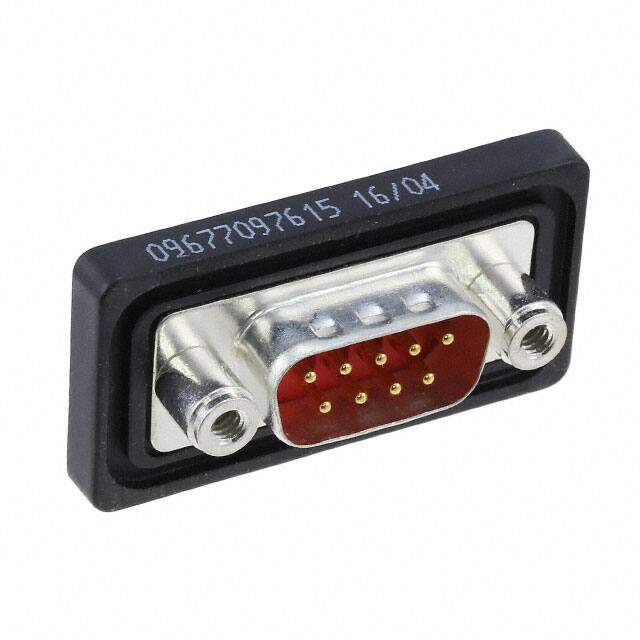

09677097615 image
Favorite
09677097615 image
Favorite

09677097615

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB IP67 9POLE STR FRONT PLASTI
PDF
/
Buying Options
Total Price: USD $22.92
Unit Price: USD $22.924
≥1 USD $22.924
≥10 USD $20.07544
≥100 USD $19.207936
≥500 USD $18.588416
≥1000 USD $17.968808
≥3000 USD $16.977453
Inventory: 78
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount
Dielectric Material Thermoplastic, Glass Filled
Housing Material Thermoplastic
Shell Material, Finish Brass, Tin Plated

Technical

Operating Temperature -25°C~70°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Current Rating (Amps) 5A
Total Number of Contacts 9
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 14.4mm
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Dimensions

Length 40mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
