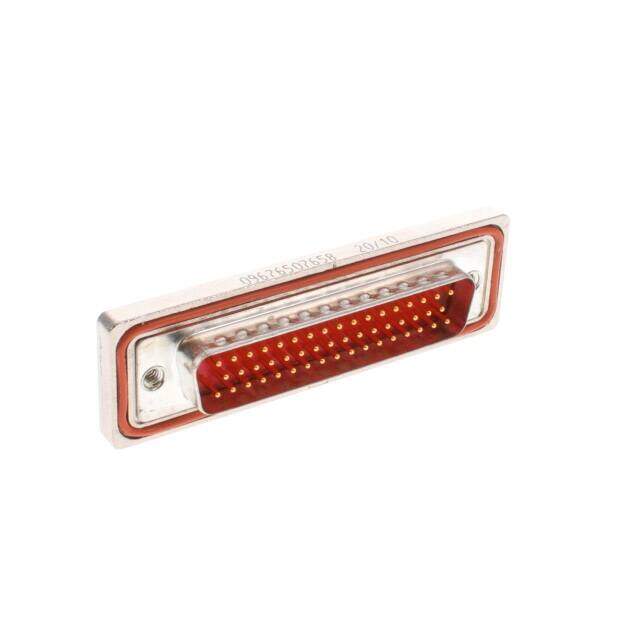

09676507658

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB IP67 ML ANG PCB 50P S4 MET FRAM
PDF
/
Buying Options
Total Price: USD $108.89
Unit Price: USD $108.8912
≥1 USD $108.8912
≥10 USD $99.92664
≥100 USD $96.08368
≥500 USD $92.881008
≥1000 USD $87.756504
Inventory: 68
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Technical

Backset Spacing 0.228 (5.80mm)
Shell Size, Connector Layout 5 DD D
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 50
Current Rating (Amps) 5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Additional Feature STANDARD: DIN 41652
Number of Rows 3
Number of Positions 50
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents, Mounting Brackets
Packaging Bulk
Operating Temperature -25°C~70°C

Physical

Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
