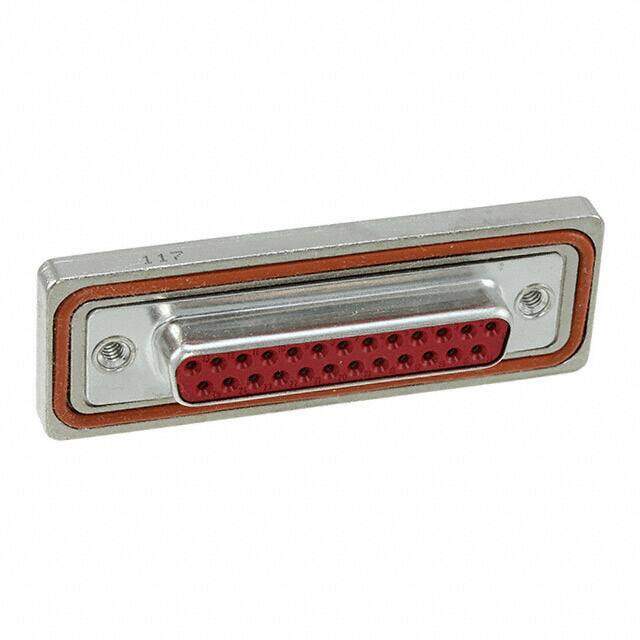

09676256758
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB IP67 FEM ANG PCB 25P S4 MET FRAM
PDF
/
Buying Options
Total Price: USD $52.68
Unit Price: USD $52.681001
≥1 USD $52.681001
≥10 USD $49.699056
≥100 USD $46.88591
≥500 USD $44.231986
≥1000 USD $41.728293
Inventory: 4172
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Cable, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Dielectric Material Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Brass, Tin Plated
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Feature Board Lock, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Receptacle
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 25
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.228 (5.80mm)
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
