09676157615
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

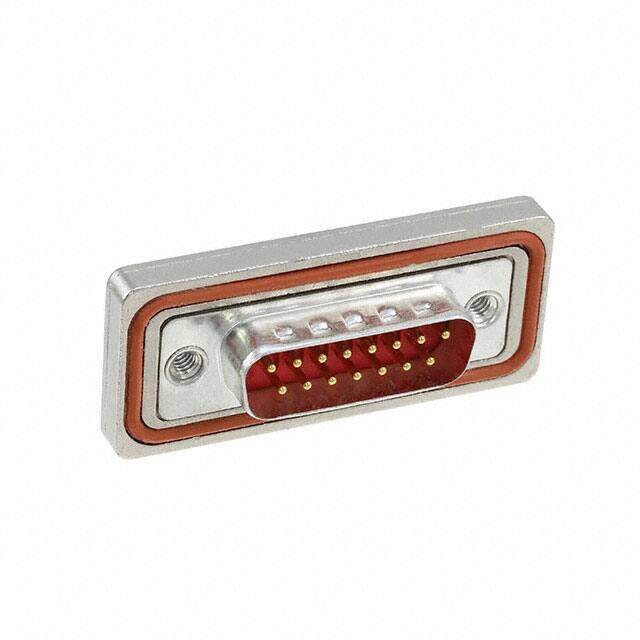

D-Sub Standard Connectors D SUB IP67_15 POLE STRAIGH
PDF
/
Buying Options
Total Price: USD $27.37
Unit Price: USD $27.374925
≥1 USD $27.374925
≥10 USD $25.8254
≥100 USD $24.363589
≥500 USD $22.984518
≥1000 USD $21.68351
Inventory: 6849
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 15
Current Rating (Amps) 5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
