09675257658
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

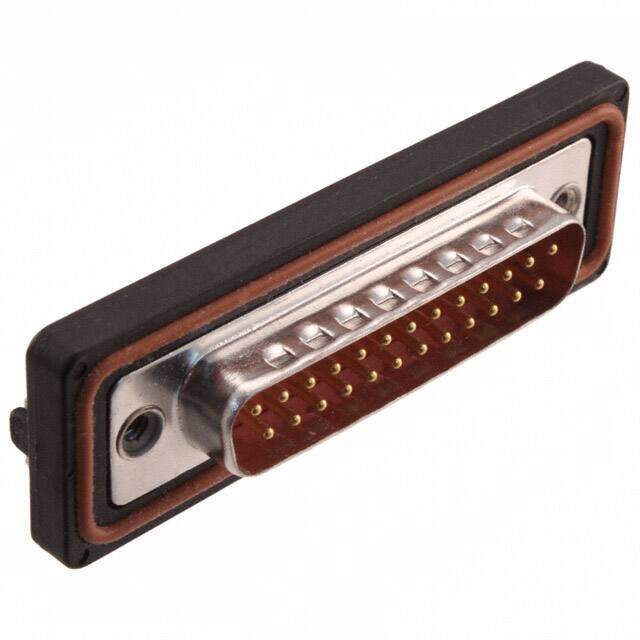

D-Sub Standard Connectors D SUB IP67 25 POLE ANGLED
PDF
/
Buying Options
Total Price: USD $27.97
Unit Price: USD $27.9664
≥1 USD $27.9664
Inventory: 53
Minimum: 1
-
+
Technical Details
Technical
Option GENERAL PURPOSE
Pitch 2.76mm
Total Number of Contacts 25
Orientation Right Angle
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 19mm
Current Rating 5A
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.228 (5.80mm)
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Gender Male
Number of Rows 2
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents, Mounting Brackets
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C
Dimensions
Length 62mm
Width 21mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
Physical
Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Package / Case Metal
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
