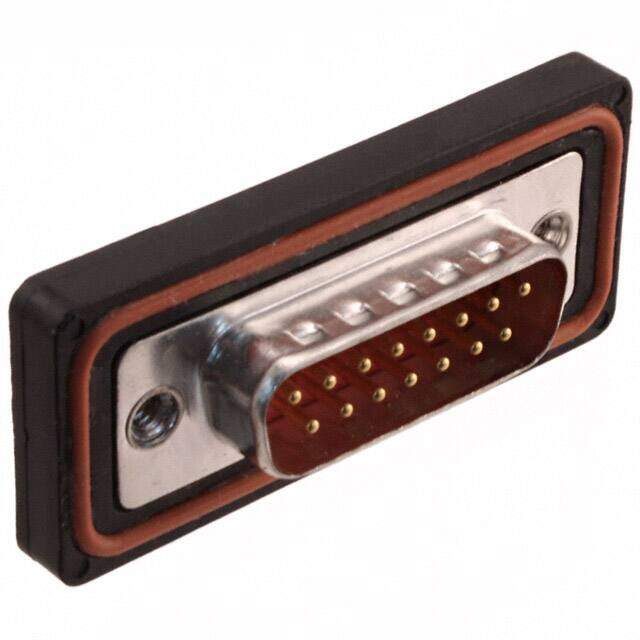

09675157675 image
Favorite
09675157675 image
Favorite

09675157675

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors D SUB IP67 15 POLE STRAIGHT
PDF
/
Buying Options
Total Price: USD $31.28
Unit Price: USD $31.279418
≥1 USD $31.279418
≥10 USD $29.508889
≥100 USD $27.838574
≥500 USD $26.262801
≥1000 USD $24.776234
Inventory: 3047
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Width 10.5mm
Length 48.3mm

Technical

Shell Size, Connector Layout 2 DA A
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Current Rating 5A
Depth 21mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Total Number of Contacts 15
Pitch 2.74mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C

Physical

Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
