09675156775
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

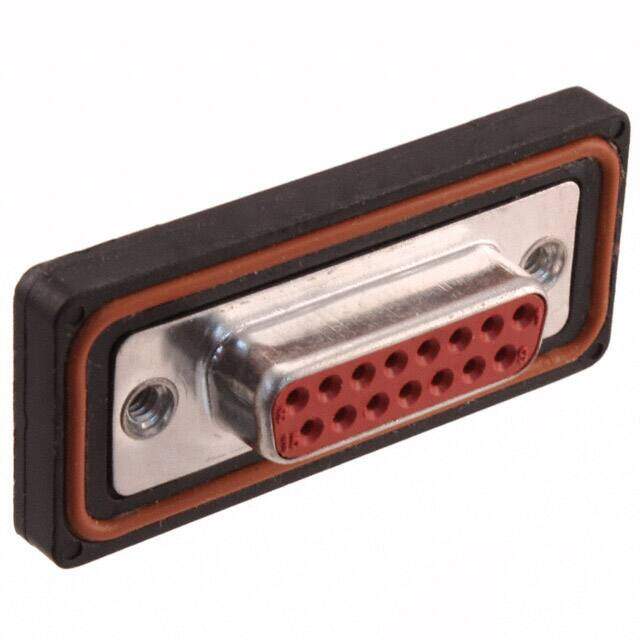

D-Sub Standard Connectors D SUB IP67 15 POLE STRAIGHT
PDF
/
Buying Options
Total Price: USD $39.39
Unit Price: USD $39.394381
≥1 USD $39.394381
≥10 USD $37.164511
≥100 USD $35.060862
≥500 USD $33.076281
≥1000 USD $31.204043
Inventory: 3071
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 10.8mm
Length 48.3mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Current Rating 5A
Depth 21mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Total Number of Contacts 15
Pitch 2.74mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Gender Female
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Mounting Type Panel Mount, Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 11 Weeks
