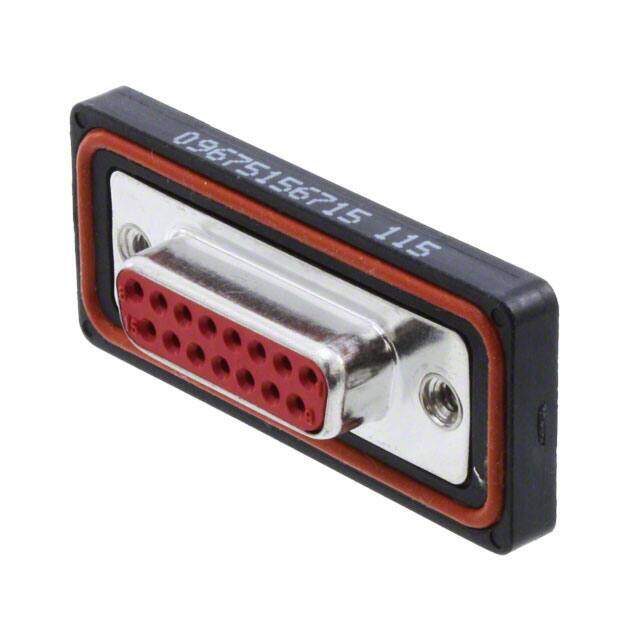

09675156715
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D SUB IP67 15 POLE STRAIGHT
PDF
/
Inventory: 6874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 21mm
Length 48.3mm
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Current Rating 5A
Depth 14.5mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Receptacle
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Package / Case Metal
Mounting Type Panel Mount
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 15 Weeks
