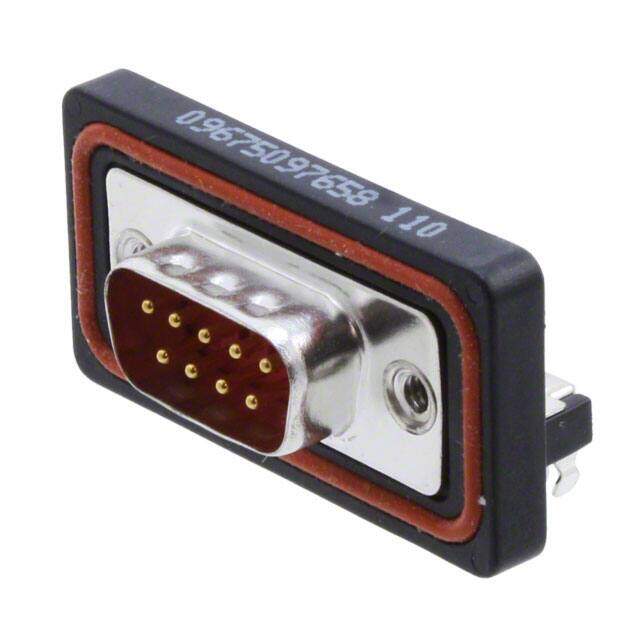

09675097658 image
Favorite
09675097658 image
Favorite

09675097658

HARTING
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 9P DSUB IP67 R/A SOLDER PIN
PDF
/
Buying Options
Total Price: USD $23.04
Unit Price: USD $23.0384
≥1 USD $23.0384
≥10 USD $20.17488
≥100 USD $19.303328
≥500 USD $18.680816
≥1000 USD $18.058128
≥3000 USD $17.061792
Inventory: 195
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Width 18.84mm
Length 40mm

Technical

Backset Spacing 0.228 (5.80mm)
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Current Rating 5A
Depth 19mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.74mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents, Mounting Brackets
JESD-609 Code e3
Packaging Bulk
Operating Temperature -25°C~70°C

Physical

Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Package / Case Metal
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 15 Weeks
