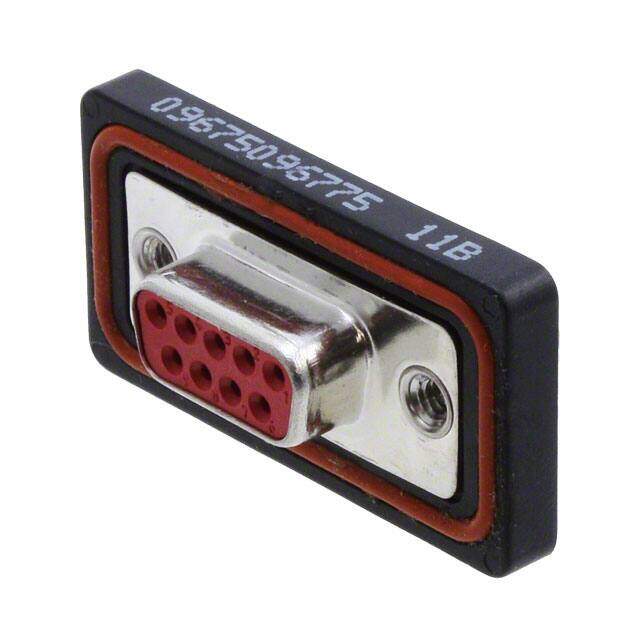

09675096775 image
Favorite
09675096775 image
Favorite

09675096775

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors D SUB IP67 9 POLE STRAIGHT
PDF
/
Inventory: 7785
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Brass, Tin Plated

Technical

Operating Temperature -25°C~70°C
Packaging Bulk
JESD-609 Code e4
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Receptacle
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 21mm
Current Rating 5A
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Dimensions

Length 40mm
Contact Finish Thickness 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
